Main Features

Designed for motorised coverings such as blinds, roller shutters, venetian slats and awnings.

Precise slat-tilt control: adjust the angle of venetian blind slats to regulate light and privacy.

Supports both push-buttons/momentary switches and toggle switches for manual control alongside smart automation.

Integrated power metering: monitor real-time power consumption and usage over time.

Ultra-low standby consumption (< 0.3 W) for efficient operation.

Operates on the Z-Wave 800 Series chip, on the 868.4 MHz band in CEPT markets, with full SmartStart inclusion.

High-level security: Z-Wave Security 2 Authenticated (AES-128 encryption) for secure smart home connectivity.

Acts as a Z-Wave repeater, helping extend network coverage (up to ~40 m indoors depending on structure).

Robust protection features: overheating detection, overcurrent and overvoltage protection built-in to safeguard motor loads and the module itself.

DIN-rail mountable format for clean installation in breaker boxes, making it ideal for new buildings or retrofit installations inside distribution boards.

Compatible with over 4,000 certified Z-Wave devices and gateways, ensuring broad interoperability.

Description

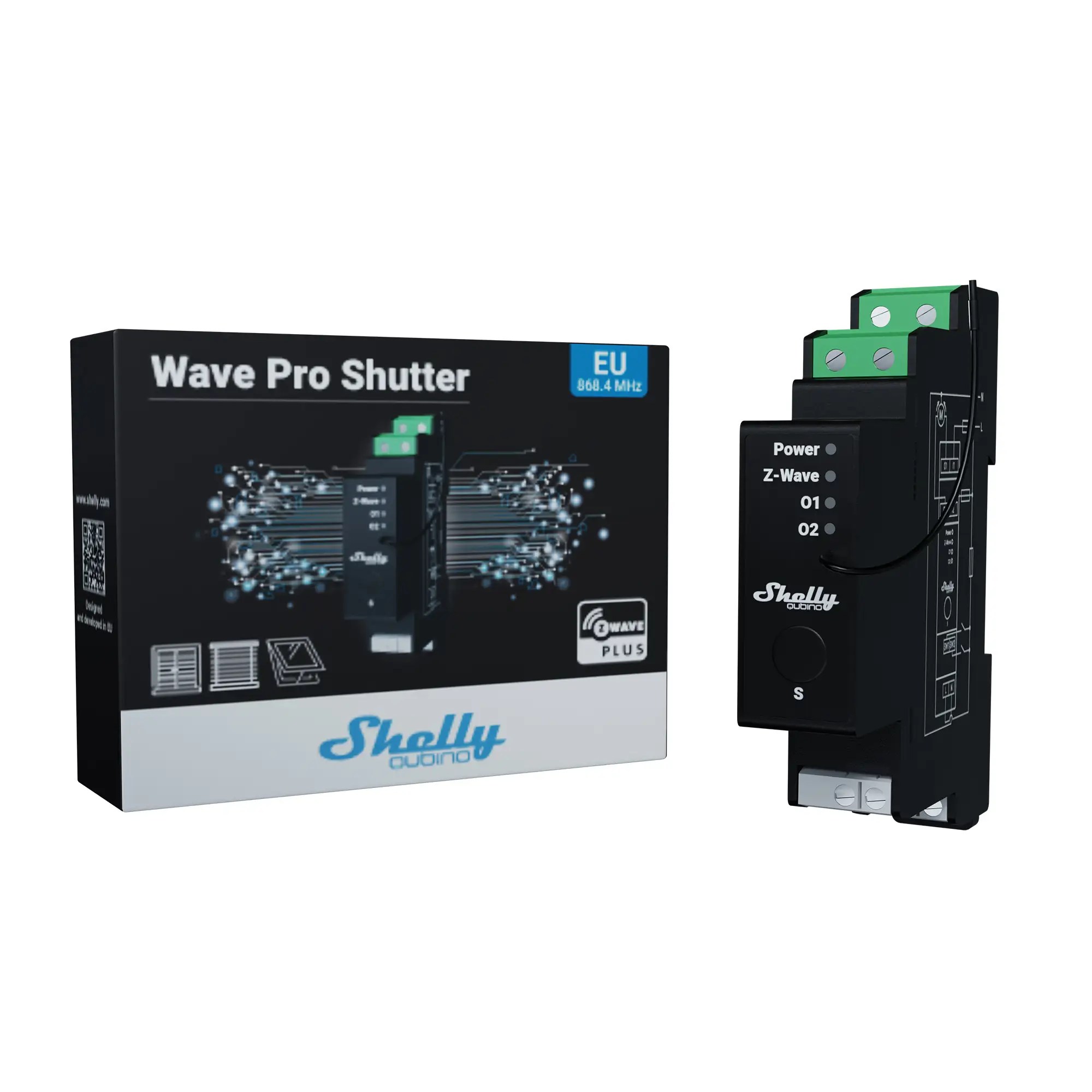

The Shelly Qubino Wave Pro Shutter is a high-performance smart module designed for the automation of motorised blinds, roller shutters, venetian slats and awnings. Engineered for DIN-rail mounting within distribution boards, it allows remote control and scheduling of up/down and slat tilt positions via a Z-Wave gateway. The unit supports both toggle switches and momentary push-buttons and integrates seamlessly into Z-Wave 800 networks with SmartStart and Security 2 Authenticated encryption. Thanks to its minimal standby consumption (< 0.3 W) and built-in power metering, it is perfectly suited for both residential and commercial building automation scenarios.

Installation is straightforward: once mounted on the DIN rail, connected to 110-240 V AC and integrated via a compatible Z-Wave hub, the module permits creation of scenes, schedules (including sunrise/sunset triggers) and device associations (e.g., wind sensor → awning control) for full automation. The Wave Pro Shutter unit supports the latest Z-Wave chip generation and acts as a signal repeater, extending your Z-Wave network’s reach.

Whether controlling blinds in a modern home, automating shutters in an office environment or integrating awnings into a weather-based automation scheme, this device delivers reliable performance, advanced safety features (overheating, overvoltage, overcurrent protection) and power consumption insights for smarter energy management.

Technical Specifications

Specification	Detail
Power supply	110–240 V AC, 50/60 Hz
Maximum switching voltage (AC)	240 V AC
Maximum switching current per channel	16 A
Standby power consumption	< 0.3 W
Power measurement	Supported
Communication protocol	Z-Wave 800 Series
Z-Wave frequency (EU)	868.4 MHz
Indoor range	Up to 40 m (depending on building materials)
Security	Z-Wave S2 Authenticated, AES-128 encryption
Network role	Z-Wave repeater
Supported switches	Momentary and toggle
Mounting	DIN-rail
Dimensions (H × W × D)	94 × 19 × 69 mm (±0.5 mm)
Operating temperature	–20 °C to +40 °C
Operating humidity	30% to 70% RH
Protective features	Overheating, overcurrent, overvoltage
